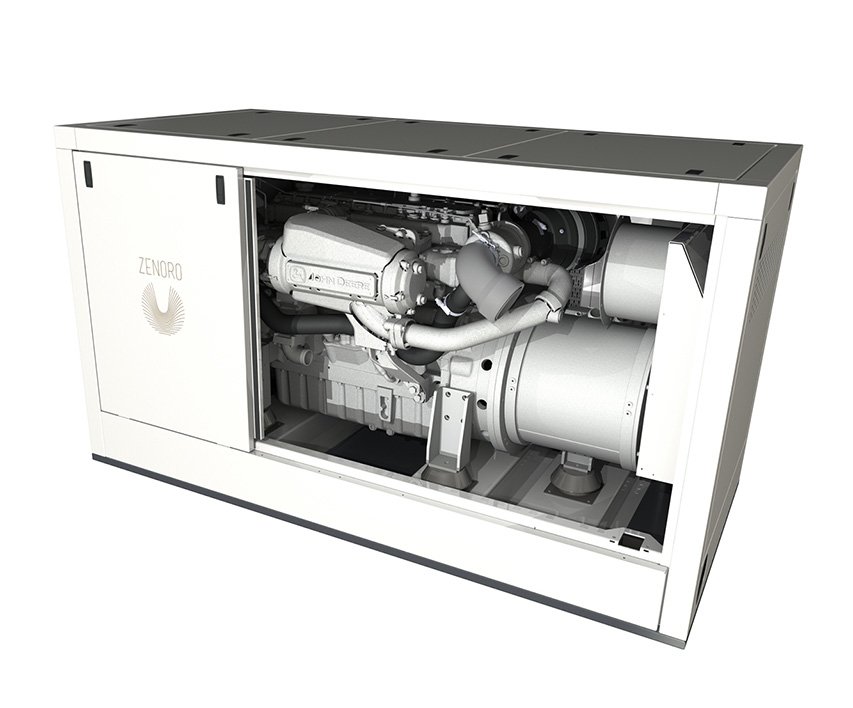

Hybrid Marine Generator ZAJDRA230VHESE - Zenoro

Hybrid Marine Generator

ZAJDRA230VHESE

6090SFM85 | Variable speed | 209 - 230 ekW | 1200 - 2000 rpm

Technical specifications

Dimensions | 2380 x 1340 x 1160 mm

Weight | dry weight 2125 kg

Sound reduction | equal or > than 20 dB(A) at 1 meter free field conditions

Vibrations | low

Power | 209 – 230 ekW

Emission | IMO II – IMO III (optional)

Colours | RAL 9010 or custom

Enclosure | aluminium modular design

Specs model: 6090SFM85 230kWe

BACK TO OVERVIEW GENERATORS

Our Hybrid range

Hybrid Marine Generator | ZAJDRA230VHESE — Hybrid Marine Generator
ZAJDRA230VHESE | 6090SFM85 | Variable speed | 209 – 230 ekW | 1200 – 2000 rpm

Hybrid Marine Generator | ZAJDRA408VHESE — Hybrid Marine Generator
ZAJDRA408VHESE | 6135SFM85 | Variable speed | 371 – 408 ekW | 1200 – 2000 rpm

Hybrid Marine Generator | ZAJDRA227VHEOU — Hybrid Marine Generator
ZAJDRA227VHEOU | 6068SFM85 | Variable speed | 206 – 227 ekW | 1200 – 2600 rpm | SCR

Hybrid Marine Generator | ZAJDRA540M4VHESE — Hybrid Marine Generator
ZAJDRA540M4VHESE | 6140SFM85 | Variable speed | 260 – 500 ekW | 1800 – 2200 rpm | SCR

Hybrid Marine Generator | ZAJDRA540M2VHESE — Hybrid Marine Generator
ZAJDRA540M2VHESE | 6180XFM85 | Variable speed | 370 – 500 ekW | 1800 – 2100 rpm | SCR

Our hybrid range

Hybrid Marine Generator

6180XFM85 | Variable Speed | 370 – 500 ekW | 1800 – 2100 RPM

Hybrid Marine Generator

6136SFM85 | Variable Speed | 260 – 500 ekW | 1800 – 2200 RPM

Hybrid Marine Generator

6068SFM85 | Variable speed | 206 – 227 ekW | 1200 – 2600 rpm | SCR

Hybrid Marine Generator

6090SFM85 | Variable speed | 209 – 230 ekW | 1200 – 2000 rpm

Hybrid Marine Generator

6135SFM85 | Variable speed | 371 – 408 ekW | 1200 – 2000 rpm
